Custom Online CNC Machining Services
Instant quotes on custom metal and plastic machined parts. Quick-turn prototypes and production parts in days.
Free standard shipping on all US orders. ISO 9001:2015, ISO 13485, AS9100D certified. ITAR registered.

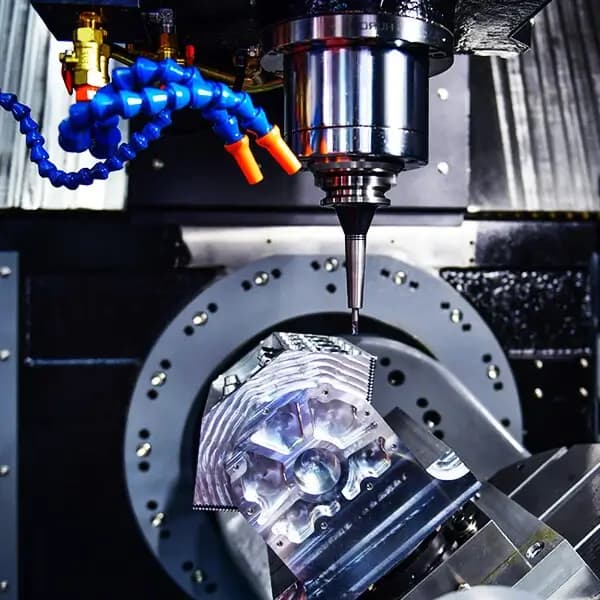

What is CNC Machining?
CNC, or computer numerical control machining, is a widely used manufacturing process that uses automated, high-speed cutting tools to form designs from metal or plastic stock. Standard CNC machines include 3-axis, 4-axis, and 5-axis milling machines, lathes, and routers.
Skilled machinists operate CNC machines by programming tool paths based on the geometry of the final machined parts. The part geometry information is provided by a CAD (computer-aided design) model. CNC machines can cut almost any metal alloy and rigid plastic with high precision and repeatability.
Artemis 3D provides CNC services and offers custom CNC quotes on over 50 materials ranging from commodity aluminum and acetal to advanced titanium and engineered plastics like PEEK and Teflon.
CNC Machining Services
Milling, turning, routing, and high-volume production capabilities
CNC Milling Services
Instant quotes on custom milled metal and plastic parts. Quick-turn prototypes and production parts in days.
CNC Turning Service
Instant quotes on custom metal and plastic turned parts. Ideal for cylindrical components with excellent concentricity.
CNC Routing Services
Get quotes on custom parts with our CNC Routing Service. Perfect for larger flat parts and sheet materials.
Swiss Machining
High-quality Swiss-type machining for intricate, small-diameter parts with excellent surface finishes.
High Volume CNC Machining
Production CNC machined prototypes and production parts. Optimized for high-volume manufacturing runs.
CNC Machining Tolerances
Precision machining with tight tolerances for demanding applications
| Feature | Description |
|---|---|
| Maximum Part Size | Milled parts up to 80" x 48" x 24" (2,032 x 1,219 x 610 mm). Lathe parts up to 62" (1,575 mm) length and 32" (813 mm) diameter. |
| Standard Lead Time | 3 business days |
| General Tolerances | Metals: +/- 0.005" (+/- 0.127 mm) per ISO 2768. Plastics and composites: +/- 0.010". |
| Precision Tolerances | Sub +/- 0.001" tolerances available per drawing specifications and GD&T callouts. |
| Minimum Feature Size | 0.020" (0.50 mm). May vary depending on part geometry and material. |
| Threads and Tapped Holes | Any standard thread size. Custom threads available with manual quote review. |
| Edge Condition | Sharp edges are broken and deburred by default. |
| Surface Finish | Standard as-machined: 125 Ra or better. Additional finishing options available. |
Metal CNC Machining Materials
Over 40 metal alloys available for precision machining
Aluminum Alloys
Lightweight, corrosion-resistant, excellent machinability
Stainless Steel
Corrosion-resistant, high strength, medical grade options
Steel Alloys
High strength, heat treatable, cost-effective
Titanium
Exceptional strength-to-weight ratio, biocompatible
Copper & Brass
Excellent conductivity, corrosion resistance
Plastic CNC Machining Materials
Engineering and high-performance plastics for every application
Engineering Plastics
Versatile, cost-effective, good mechanical properties
High-Performance Plastics
Extreme temperature resistance, chemical resistance
Don't see your material? Select "Custom" in the quoting engine for manual review.
View all materials in our quoting engineCNC Machining Finishes
Surface treatments to enhance appearance and performance
As-Machined
Standard 125 Ra finish with visible tool marks. Quickest turnaround.
Bead Blast
Smooth, uniform matte appearance.
Tumbled
Removes sharp edges and burrs, smooths exterior surfaces.
Anodized Type II
Corrosion-resistant finish in various colors (clear, black, red, gold).
Anodized Type III
Hard coat anodizing for wear resistance. Thicker than Type II.
Powder Coat
Durable, wear and corrosion-resistant coating in many colors.
Chem Film
Chromate conversion coating for corrosion resistance and conductivity.
Passivation
Improves corrosion resistance for stainless steels.
Electroless Nickel Plating
Uniform coating for corrosion and wear protection.
Electropolishing
Electrochemical cleaning for improved appearance and corrosion resistance.
CNC Machining Design Guidelines
Optimize your designs for manufacturability and cost
| Feature | Guideline |
|---|---|
| Internal Corner Fillets | Design to be 0.020" - 0.050" greater than standard drill size. Follow 1:6 depth ratio (1:4 recommended). |
| Floor Fillets | Design smaller than corner fillets to allow same tool to clear material. |
| Undercuts | Always design to standard sizes and away from corners for tool accessibility. |
| Threaded Hole Depth | Provide tool clearance slightly beyond tapped depth for complete threads. |
| Complexity | Minimize small cuts to reduce cost. Balance function with aesthetics. |
Advantages of CNC Machining
High Precision
Tolerances as tight as +/-0.001" with excellent repeatability across production runs.
Material Variety
Over 50 industrial-grade metals, alloys, and plastics available for any application.
Fast Turnaround
Parts delivered in as fast as 3 days. 24/7 machining capability for urgent deadlines.
Scalable Production
From single prototypes to 10,000+ unit production runs with consistent quality.
Quality Certified
ISO 9001:2015, ISO 13485, AS9100D certified. ITAR registered for defense work.
Full Traceability
Material certifications, CoCs, and inspection reports available for all orders.
CNC Machining Applications
Rapid Tooling
Create fixtures, molds, and tooling from durable materials like aluminum and stainless steel.
Rapid Prototyping
Affordable metal alloys and plastics combined with fast turnaround for quick iteration cycles.
End-Use Production
Performance finishes, precision tolerances, and certifiable materials for production parts.
Industries We Serve
CNC machining is trusted across industries for precision components
Ready to Get a CNC Machining Quote?
Upload your CAD files for instant pricing on custom machined parts. Free shipping on all US orders.
Get Your Instant QuoteWhy Choose Artemis 3D for CNC Machining?
Instant Pricing
Upload your CAD files and get instant quotes with DFM feedback. No waiting for manual reviews on standard parts.
Fast Delivery
Parts delivered in as fast as 3 days. Expedite options available for urgent deadlines.
Quality Assured
ISO 9001:2015, ISO 13485, AS9100D certified network. ITAR registered for defense and aerospace work.
Start Your CNC Machining Project Today
Upload your CAD files and get instant pricing on precision machined parts in over 50 metals and plastics.
